Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line

Name: Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line
Brand: HANYU
Price: 23 USD

Wholesale Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line from china suppliers

Brand Name : HANYU

Model Number : TY1x30D-1800

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD23,000.00-25,000.00/set

Payment Terms : L/C, T/T

Supply Ability : 10sets/month.

Delivery Time : 15-35days

Packaging Details : Container

Max continuous tension : 30kN

Electrical system : 12V

Total weight : 4600kg

Single cylinder diesel engine : 18kw(25hp)

Overall dimension (length*width*height) : 5000*2000*2600mm

Type : Cable Tensioners Hydraulic For Transmission Line

Contact Now

Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line

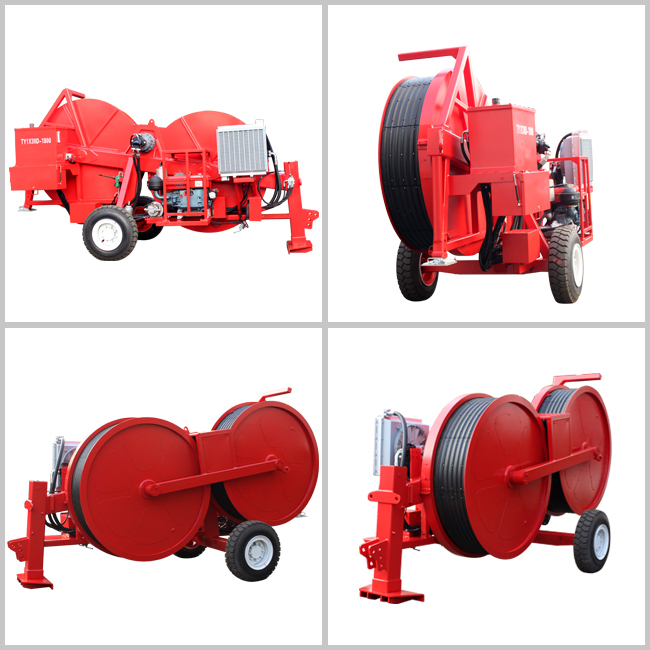

TY1x30D-1800 Hydraulic Tensioner

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.
The hydraulic power unit provides the traction of conductors at both positive and negative directions.

Characteristics

Bull-wheel diameter: 1800mm

Groove number: 5

Max conductor diameter: 40mm

Overall dimension (length*width*height): 5000*2000*2600mm

Total weight: 4600kg

Performance

Max continuous tension: 30kN

Max speed: 5km/h

Max reverse pulling force: 20kN

Speed at max tension: 2.5km/h

Pull at max speed: 15kN

Main configuration

Engine: Changchai China

Main motor: French Leduc

Hydraulic valve: German Rexroth

Hydraulic pump: German Concentric

Hydraulic meter: German WIKA

Speed reducer: German Rexroth / Italy Bonfiglioli

Engine

Electrical system 12V

Single cylinder diesel engine 18kw(25hp)

Hydraulic Transmission

The machine is provided with tension presetting system

The machine can realize step less speed

Configuration

Hydraulic dynamometers

Grounding connection point

Hydraulic oil cooling system

Additional Devices

Air brake system for the trailer (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h

Hydraulic conductor clamps for drum change operations (extra charge)

Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line
